Raspberry Pi · current

Raspberry Pi Pico (RP2040)

RP2040-based microcontroller board (Pico 1 series) with 26 GPIO, 2 MB flash and PIO state machines.

Evidence: Inferred 2 sources · latest retrieved 2026-10-16 · audited

Compare with another

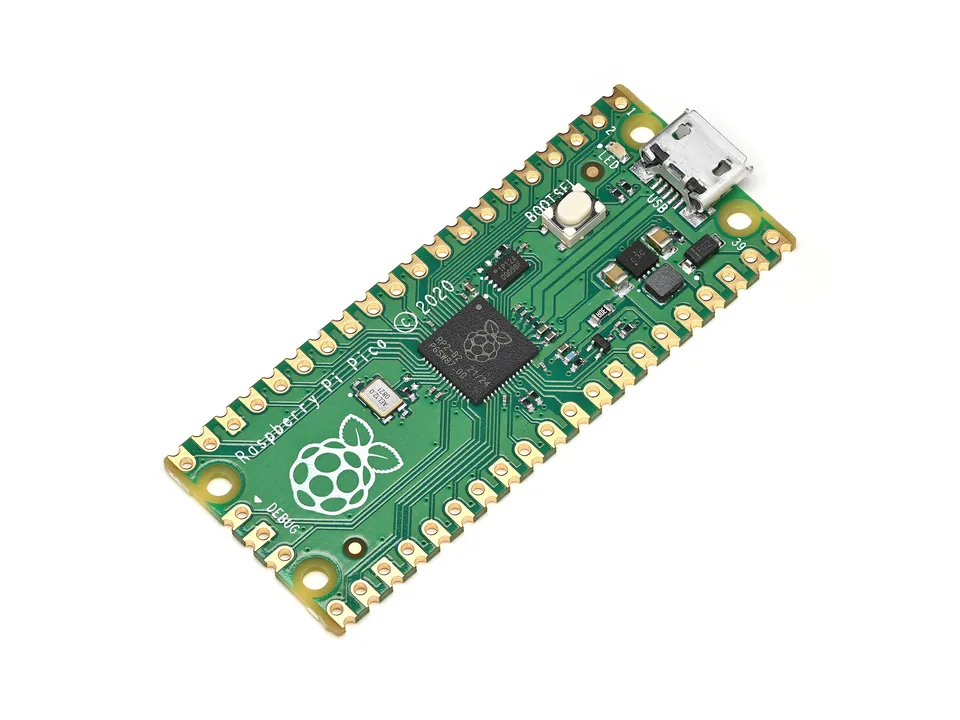

Raspberry Pi Pico microcontroller board with its RP2040 chip and micro-USB port
Image: Phiarc · CC BY-SA 4.0 · Wikimedia Commons

Key specs

Logic level
3.3 V
MCU
RP2040 Evidence: Documented
CPU clock max
133 MHz Evidence: Documented
Flash
2 MB Evidence: Documented
SRAM
264 KB Evidence: Documented
GPIO pins
26 Evidence: Documented

Works with and related

Read the caveats

Suggested for: Compare boards: documented capabilities

All specifications 9
SpecValueEvidence
MCURP2040
Dual-core Arm Cortex-M0+
Evidence: Documented
CPU clock max133 MHz
flexible clock running up to 133 MHz
Evidence: Documented
SRAM264 KBEvidence: Documented
Flash2 MB
on-board QSPI flash
Evidence: Documented
GPIO pins26
multifunction GPIO incl. 3 analogue inputs
Evidence: Documented
Pio state machines8Evidence: Documented
Input voltage min1.8 VEvidence: Documented
Input voltage max5.5 VEvidence: Documented
GPIO logic level3.3 V
Pico IO voltage fixed at 3.3 V; ADC-capable GPIO26-29 must not exceed IOVDD + ~300 mV (datasheet)
Evidence: Documented
Caveats

logic_level_v=3.3 added by audit from the Pico datasheet (not stated on the product page). Specs apply to the Pico 1 series; wireless (W/WH) variants differ (operating temp -20 to +70 C, radio). Operating temp -20 to +85 C applies to Pico/Pico H only. Pico 2 alternative_to relation is inference from the page's Related products list ('our next-generation microcontroller board').

Claims 4

  • Pico is built on RP2040, a dual-core Arm Cortex-M0+ chip with 264 kB internal SRAM. Evidence: Documented

    Source: src-pico-product

  • Pico is programmable in C and MicroPython and supports drag-and-drop programming over USB mass storage. Evidence: Documented

    Source: src-pico-product

  • The Pico 1 series will remain in production until at least January 2036. Evidence: Documented

    Source: src-pico-product

  • Pico W and WH add 2.4 GHz 802.11n wireless LAN and Bluetooth 5.2. Evidence: Documented

    Source: src-pico-product

Sources 2

  • Raspberry Pi · manufacturer_docs

    https://www.raspberrypi.com/products/raspberry-pi-pico/

    Locator: Specification list; Obsolescence section; intro paragraphs · Retrieved 2026-10-16

    Dual-core Arm Cortex-M0+ processor, flexible clock running up to 133 MHz; 264kB on-chip SRAM; 2MB on-board QSPI flash; Raspberry Pi Pico 1 series will remain in production until at least January 2036

  • Raspberry Pi Ltd · datasheet

    https://datasheets.raspberrypi.com/pico/pico-datasheet.pdf

    Locator: Features list (Release 21, 03/07/2026); GPIO section: "GPIO is powered from the on-board 3.3 V rail and is therefore fixed at 3.3 V" · Retrieved 2026-10-16

    The Raspberry Pi Pico's GPIO is powered from the on-board 3.3 V rail and is therefore fixed at 3.3 V.
